Inter Remote Shatter Valve (IRSV)
IRSV - Bidirectional barrier valve shatters after pressure cycles, allowing full-bore access
This product can be used in:
The Product
The Inter Remote Shatter Valve
The IRSV is a qualified barrier valve, which is remotely opened. It can be integrated as part of the completion string or installed below an intervention packer. By cycling the well pressure above the valve for a predetermined number of cycles, the barrier element will shatter. This leaves a full bore ID through the valve for production or intervention. No parts of the barrier element will remain when production starts.

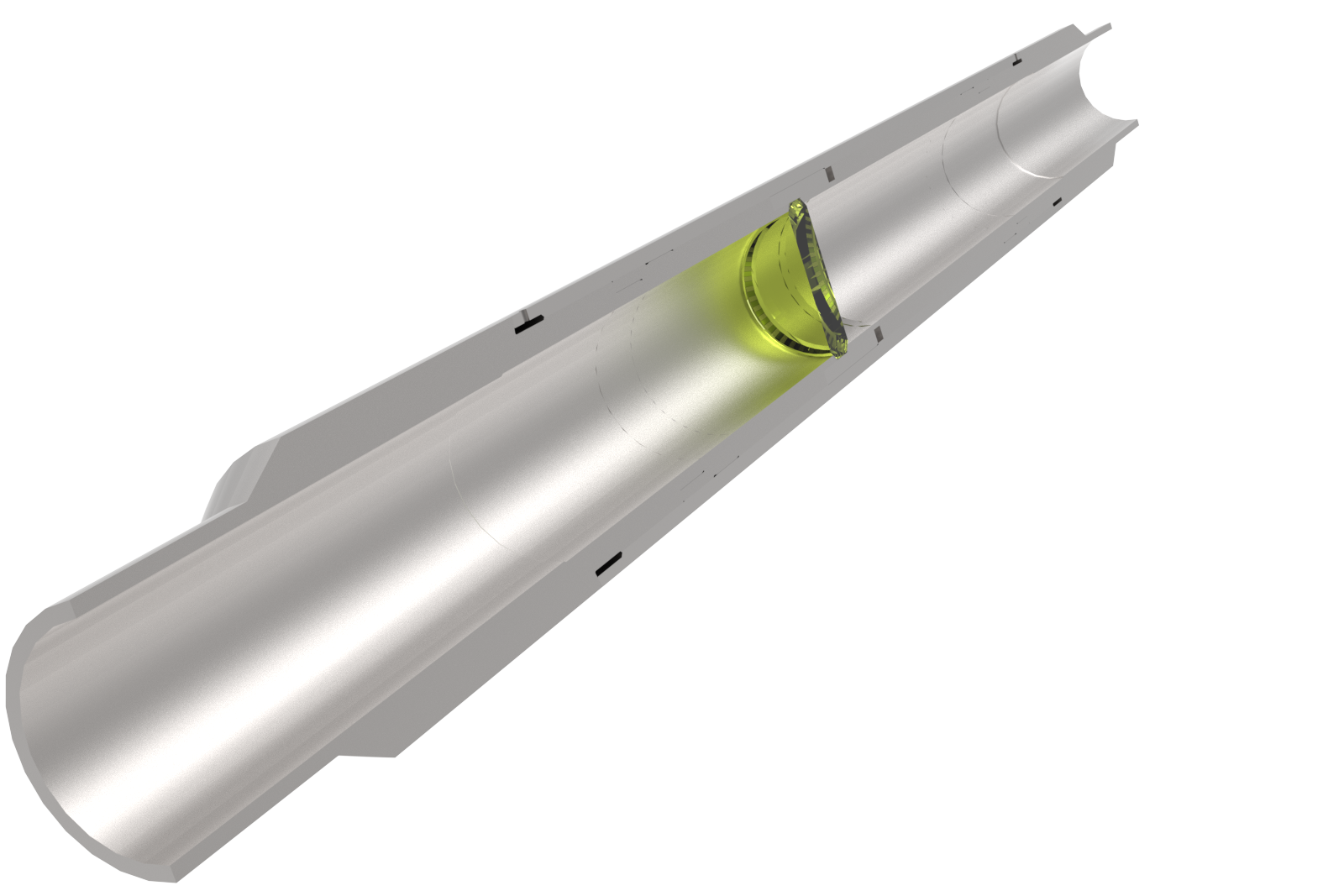

The glass element is designed to withstand extreme bidirectional loads and high temperatures. Only a small volume of glass is required to hold the load and the glass disintegrates into small particles after removal.
Application
The IRSV provides a barrier when running new completion strings. It’s used for setting of the completion packer and pressure integrity testing of the tubing. This protects lower zones while finishing of the upper completion installation is performed.
Remote actuation enables complete removal of the barrier without any further intervention. When used along with a barrier intervention packer, such as the LBP, ME or HPHT, the IRSV provides an intervention barrier that can be remotely opened by pressure cycling. The barrier packer can then be retrieved at a convenient time.
Key Benefits
- Installation and removal of the Inter Remote Shatter Valve (IRSV) does not require intervention
- Box/pin Connections according to customer specifications
- It can be run as part of the completion string or below an intervention packer
- Contingency opening of the IRSV can be done by use of mill, shoot down tool or spear
- Debris tolerant activation system
- Non Explosive opening operation
- Remotely activated; no intervention required
