VR Sense-R
VR Sense-R - Unique annulus monitoring providing independant double barriers at wellhead outlets
This product can be used in:
The Product

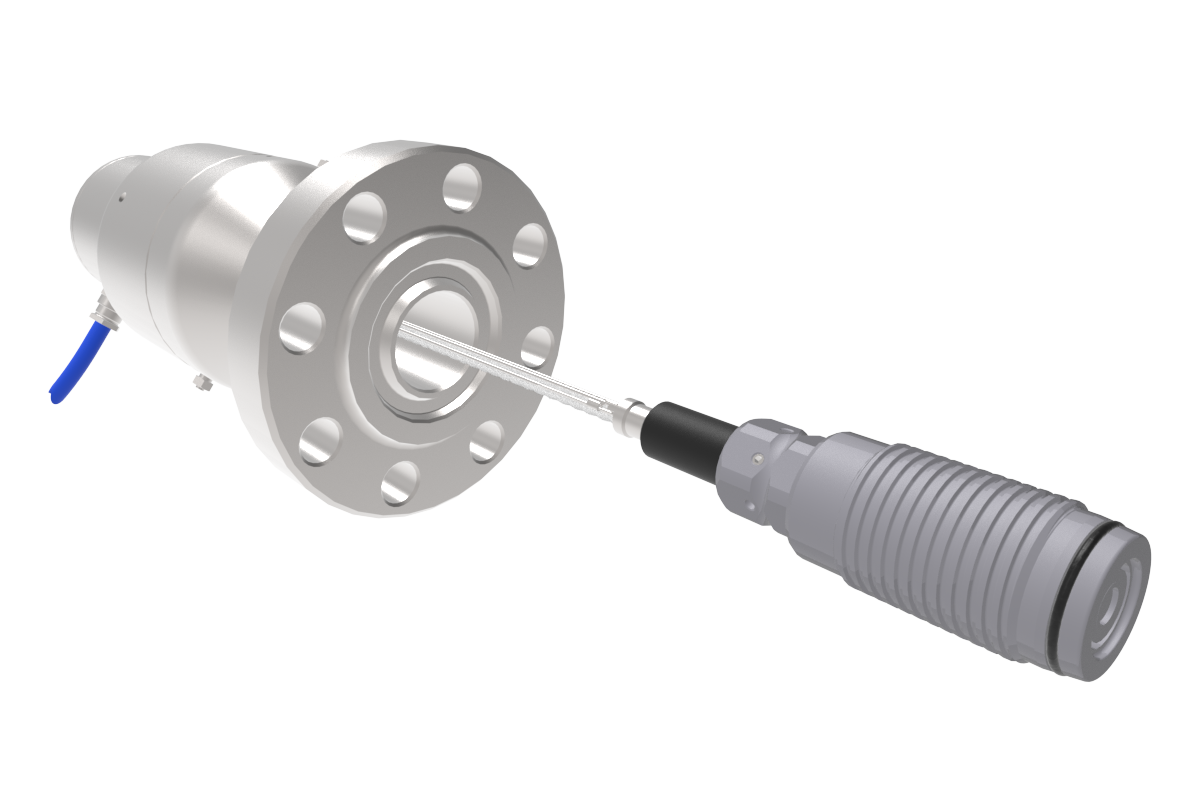

VR Sense-R™ Double Barrier Annulus P&T Sensor
VR Sense-R™ systems are unique annulus monitoring solutions delivering independent double barrier integrity at wellhead side outlets. They are also retrieveable under pressure. Their use eliminates the need for gate valves and instrument flanges. Consequently, they are a cost effective and higher performing alternative. The product family has an excellent track record since its introduction in 2012.
Technology
Wells with sustained annulus pressure pose a considerable risk to personnel and facilities. Continuous monitoring of this pressure is critical for safe operations. Conventional monitoring systems often contain a gauge downstream gate valve/flange.
Gate valves provide only a single barrier. Impact or collision can breach this barrier. Blockage by valve lubricant can impair pressure gauge operation. Regulatory and/or company requirements may demand continuous monitoring and alarms.
The VR Sensor system, provides continuous monitoring, even during ESD shut downs. The VR Sensor is designed with two independent metal-to-metal barriers. Should an impact or collision take place, the API 6FD/FB fire tested gas tight VR sensor plug will remain within the wellhead.
The VR Sensor removes potential issues related to viscous valve lubricant and can substantially lower installation and maintenance costs. The system also eliminates the need for human intervention in conjunction with gauge calibration, gate valve operation and maintenace.
Features & Benefits
- Wired
- Based on API 6A
- Atex certified for Zone 0
- Fire tested to API6FD & 6FB
- Dual independent barriers, replaceable under pressure
- NORSOK D-010 compliant
- Short and lightweight
- Saves OPEX and CAPEX
- Reliable data
- Enhances well integrity
- Continuous annulus monitoring
- Small footprint
Download Product Sheet
Adaptability
Application Areas
Annulus Pressure Management
Interwell’s annulus pressure monitoring and management system provides a cost effective and reliable system for continuous pressure- and temperature monitoring, and pressure management applications.
